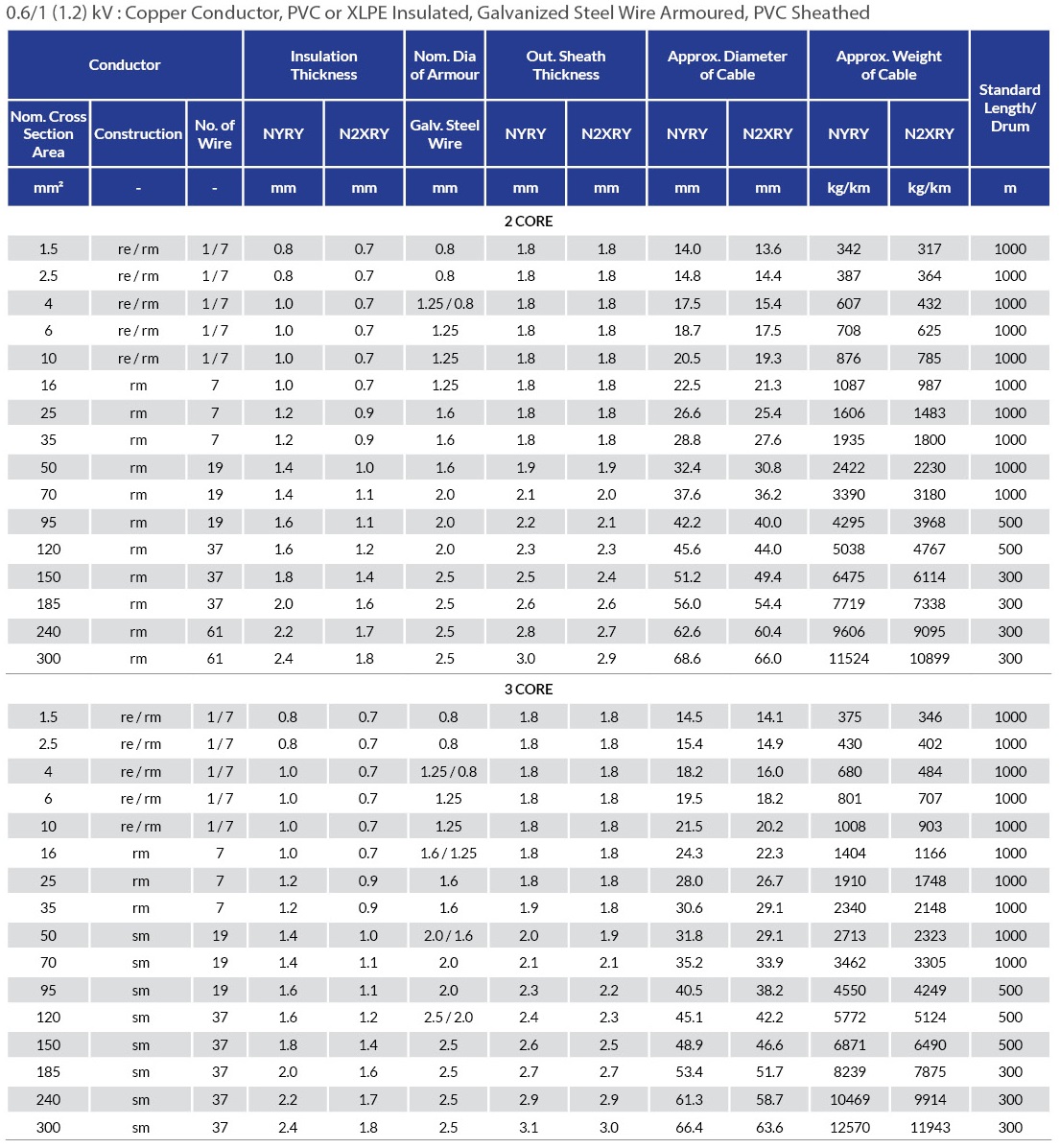

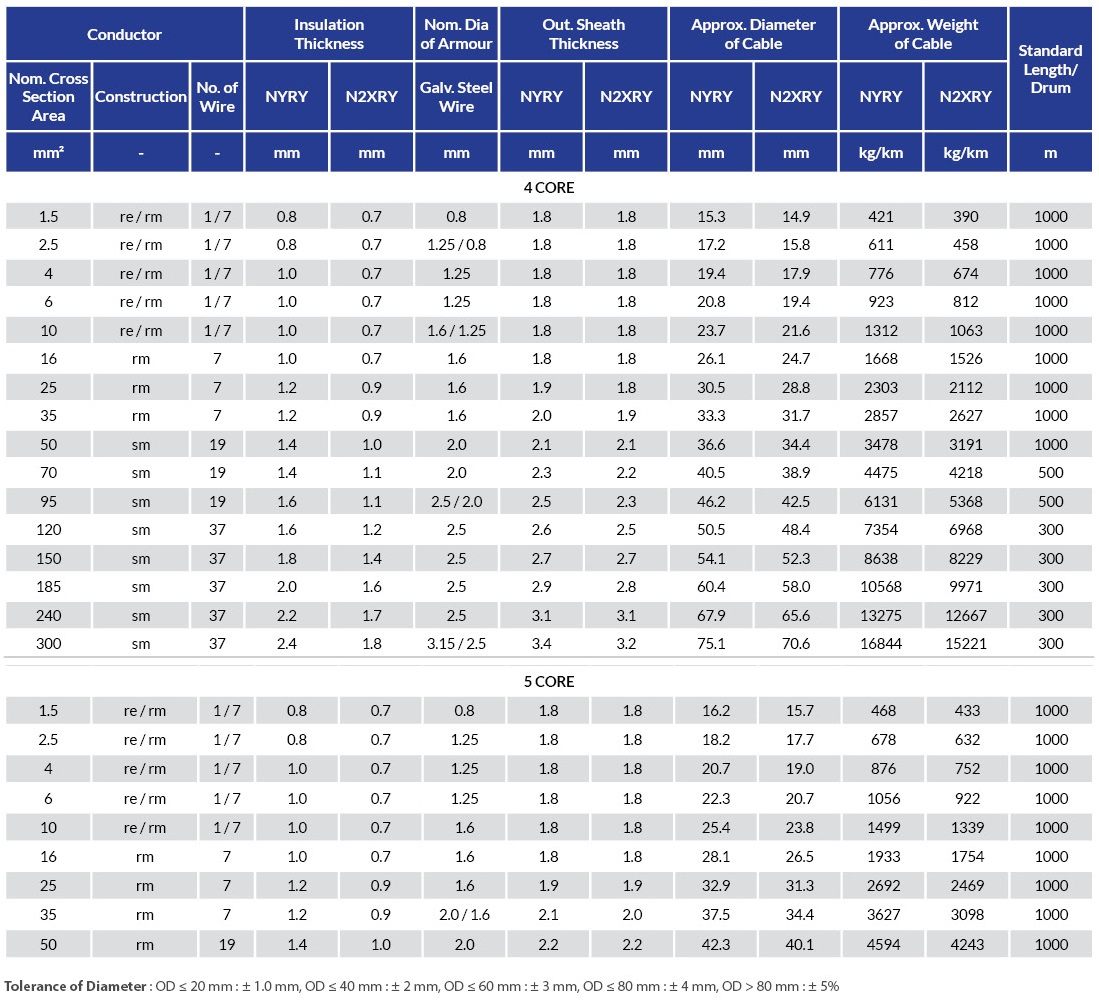

NYRY
Specification:
SNI IEC 60502-1, IEC 60502-1
Other specifications are available on request
Rated Voltage : 0.6/1 (1.2) kV
Application:
Power cable for indoor and outdoor installations and is planted directly in the ground, preferably used where considerable mechanical stress must be envisaged
Construction:
1. Conductor : Annealed Copper
2. Insulation : Extruded PVC or XLPE
3. Inner Sheath : Extruded PVC (Black Color)
4. Armour : Galvanized Steel Wire
5. Outer Sheath: Extruded PVC (Black Color)
Identification of Cores:
Twin-Cores : Blue, Black
Three-Cores : System I
Green with yellow stripe (G/Y),
Blue, Brown
System O
Brown, Black, Grey
Four-Cores : System I
Green with yellow stripe (G/Y),
Brown, Black, Grey
System O
Blue, Brown, Black, Grey
Five-Cores : Green with yellow stripe (G/Y),
Blue, Brown, Black, Grey
Other colours are available on request
