N2XSEYBY

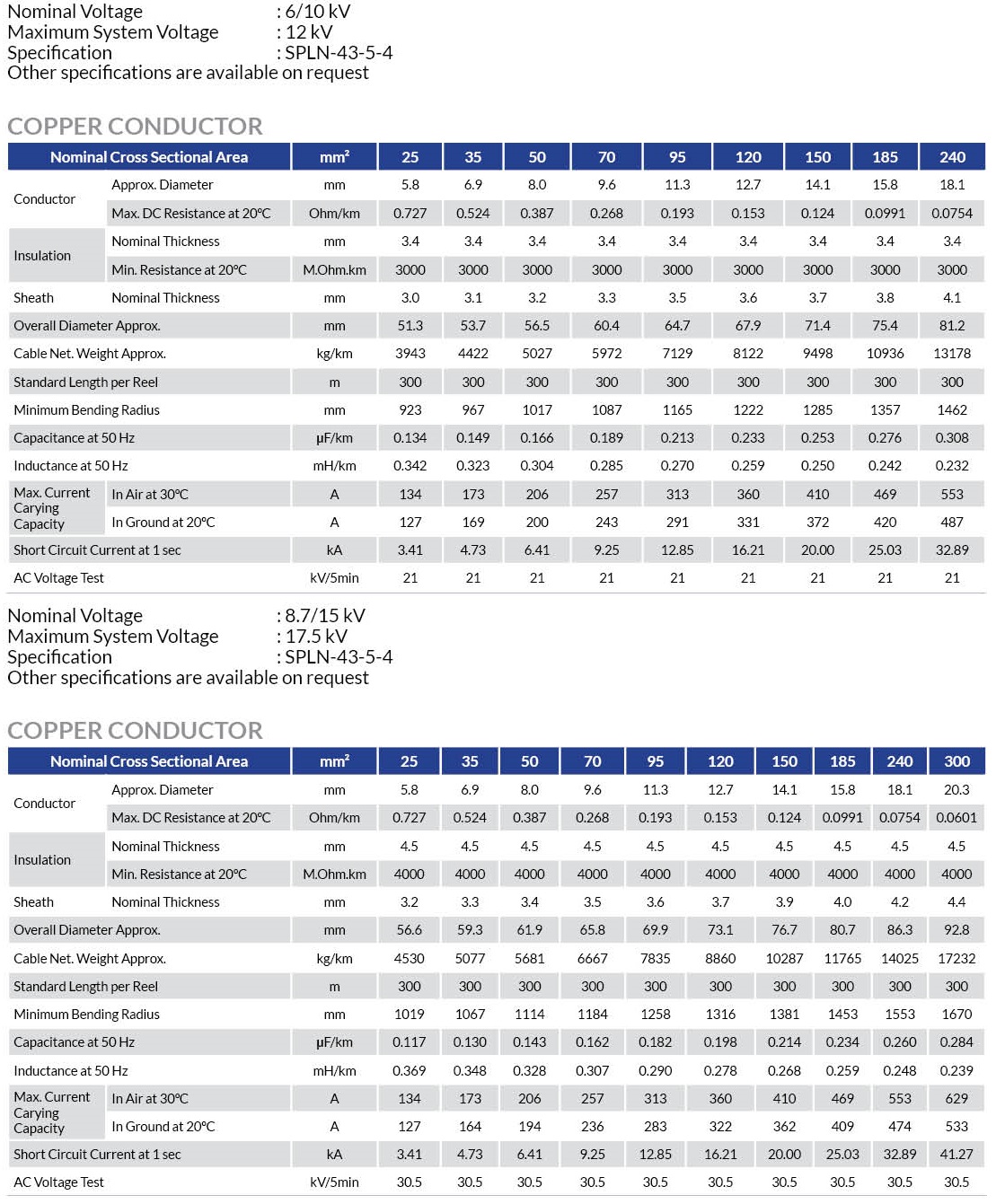

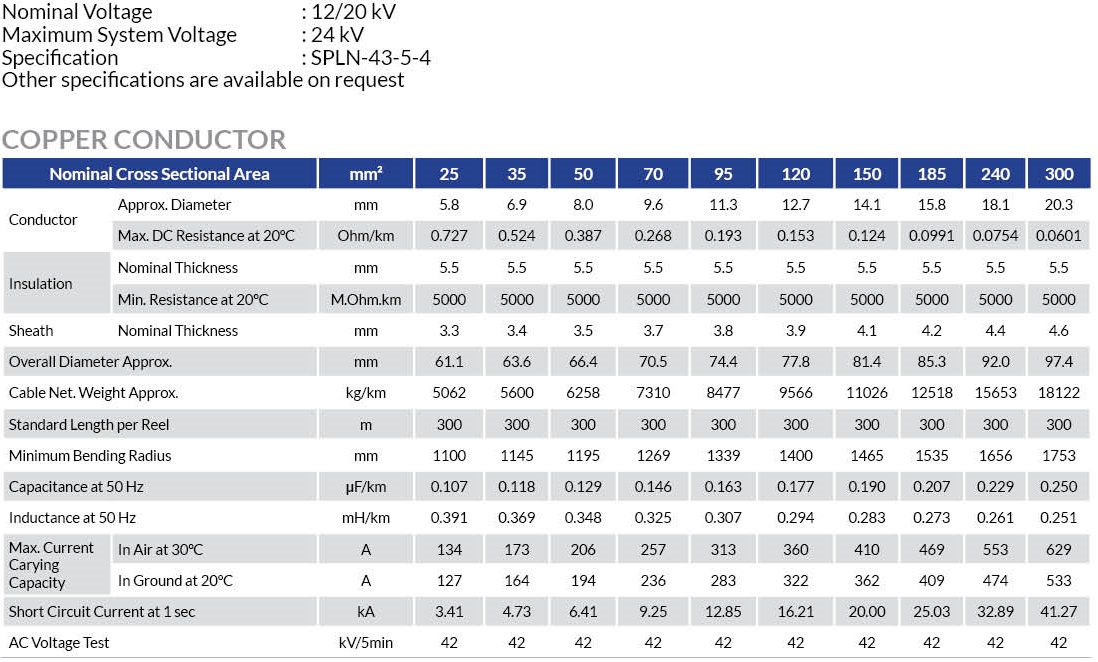

Nominal Voltage (max system voltage) :
3.5/6 kV (7.2 kV)
6/10 kV (12 kV)
8.7/15 kV (17.5 kV)
12/20 kV (24 kV)
18/30 kV (36 kV)
Specification :
SPLN 43 - 5 – 4 : 1995
Construction :
| Conductor | : Copper or Allumunium ( Compact Circular Stranded ) |
| Conductor Screen | : Extruded Semiconductive Compound |
| Insulation | : Extruded Crosslink Polyethylene (XLPE) |
| Insulation Screen | : Extruded Strippable Semiconductive Compound |
| Water Blocking | : Helicaly Overlapped Semiconductive Water blocking tape |
| Metalic Screen | : Helicaly Overlapped Copper Wire |
| Water Blocking | : Helicaly Overlapped Non-conductive Water blocking tape |
| Inner Sheath | : Extruded PVC 900 C grade |
| Armour | : Helicaly Overlapped Galvanized Steel Tape ( Double Tape ) |
| Outer Sheath | : Extruded PVC 900 C grade |
Symbol :
| Applicable Standard | : Other Specification are available on request |
| Application | : Suitable for Distribution indoor and outdoor Instalation, Direct Burial or on Trays |
