Dry Type Single Core Per Tube (SCPT) – Aerial (Figure 8)
Ref. Spec : ITU-T Recommendation G.652D
STEL K – 036 – 2012
LEGEND
Coloured Optical Fiber Core
Thixotropic Filling Gel
Extruded PBTP Tube
PE Covered Fiber Reinforced Plastic (FRP) Central Streghth Member
Water Blocking Yarn
Polyaramid Yarn
Helically Overlapped Water Blocking Tape
Rip Cord
Longitudinal Alumunium Tape (Moisture Barrier)
HDPE Sheath (Black)
Notch
Stranded Galvanized Steel Wire 7/1.2 mm (messenger)

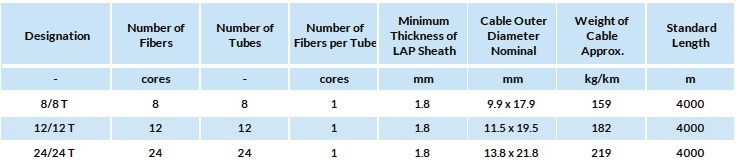

Designation of Cable & Fiber Type
SM.D A-LT : Single Mode Fiber G.652D, AERIAL Cable (FIGURE 8)
Symbol
Applicable Standard : Other Specification are available on request
