Single Mode Jelly Loose Tube Fiber Optic – Aerial (Figure 8)
Ref. Spec : ITU-T Recommendation G.652D & G.6555C
STEL K – 017 – 2009
LEGEND
Coloured Optical Fiber Core
Thixotropic Filling Gel
Extruded PBTP Tube
PE Covered Fiber Reinforced Plastic (FRP) Central Streghth Member
Filler Rod
Jelly Flooding Compound
Polyaramid Yarn
Helically Overlapped Water Blocking Tape
Rip Cord
Longitudinal Alumunium Tape (Moisture Barrier)
HDPE Sheath (Black)
Stranded Galvanized Steel Wire 7/1.2 mm (Messenger)

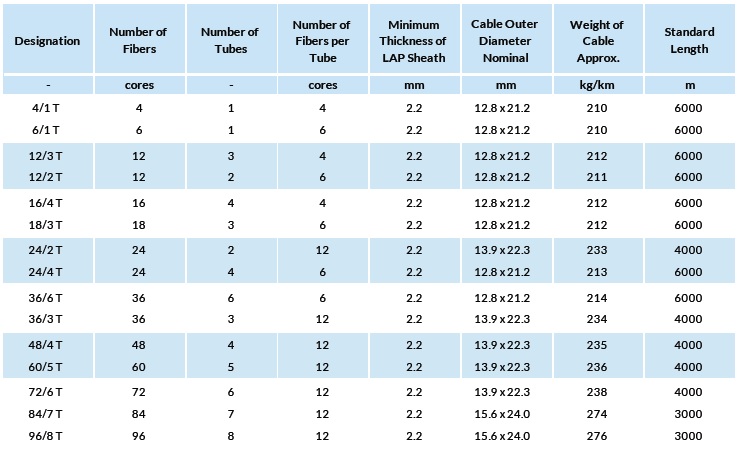

Designation of Cable & Fiber Type
SM.D A-LT : Single Mode Fiber G.652D, Aerial Cable (Figure 8)
NZDS.C A-LT : Non Zero Dispersion Shifted Fiber G.655C, Aerial Cable (Figure 8)
Symbol
Applicable Standard : Other Specification are available on request
